Functions:
Over-voltage protection
Under-voltage protection
Over-current protection
Automatic recovery
Voltage display(voltage measurement)
Current display (current measurement)
Voltage calibration: Voltage +-10% adjustable. A13
Restore factory settings: press the down button for more than 12s
Fault inquiry: Press the UP button from more than 12S Product Parameters:

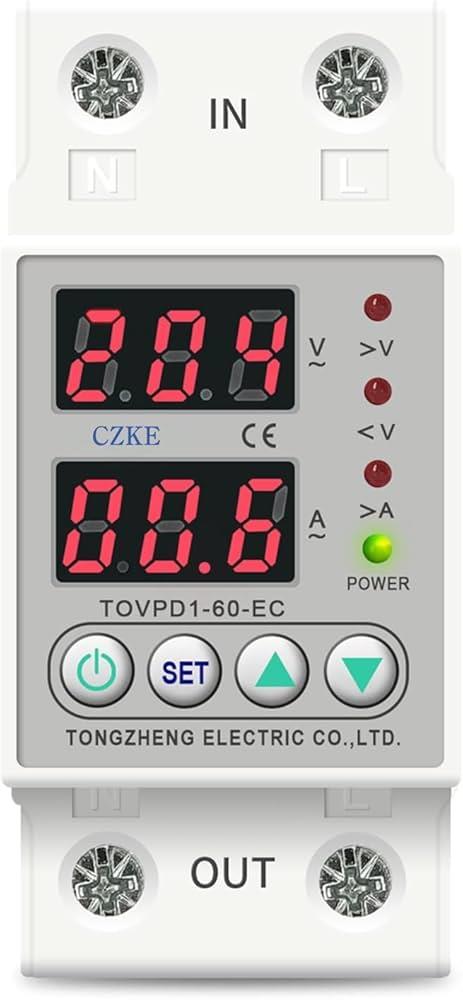

Model number:TOVPD1-60-EC
Power supply:230VAC 50/60Hz
Max.Loading power:1~40A
Adjustable(default:40A) 1~63A Adjustable(default:63A)
Over-voltage protection value range:230V~300~OFF
(default:270V) Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
Under-voltage protection value range:140V--210V --OFF
(default:170V) Under-voltage recovery voltage range:145V--215V
(default:190V) Under-voltage
protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
Over-cu
